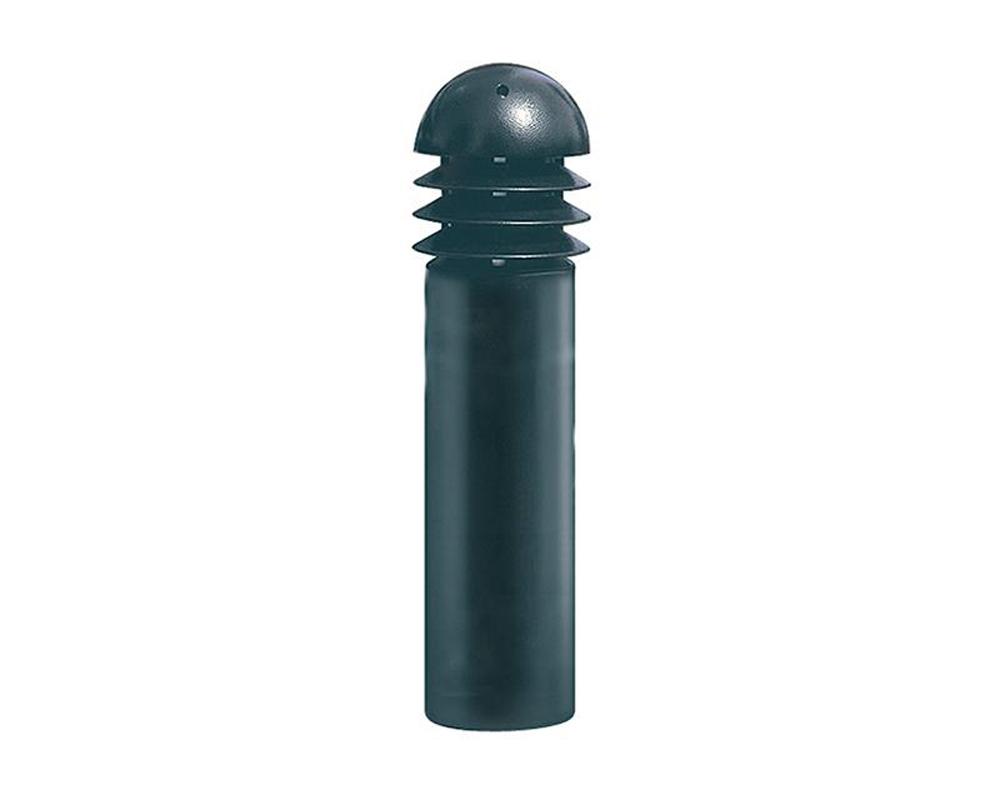

Hadco DB21-LED 120V 9.5W Cast Aluminum Round Top Bollard

LED Lamp Included

The DB Series is a line voltage Bollard available in incandescent, CFL, HID and LED sources. This versatile luminaire features a dome roof with die-cast aluminum louvers, and in a variety of heights. Optics include a symmetric, die-cast aluminum louvers with underside painted with highly reflective white powdercoat and a tempered glass globe. The LED sources features a 9.5W Philips LED EnduraLED lamp, LED 4Kv medium base porcelain socket A19. The 2700K warm white delivers 800 lumens and the lamp life is rated at 25,000 hours.

Features

• Ensures long-lasting durability
• Tightly sealed protection
• Highly weather-resistant

Specifications

• Height: 21 Inch
• Width: 6 Inch
• Bolt Circle: 3 Inch
• Base Diameter: 5 Inch
• Anchor Rods (Text Format): Internal (3).38 Inch dia. x 8 Inch long (1 cm x 20cm)
• Electrical Assembly:LED is 2700K warm white, delivers 800 lumens, and is dimmable. Lamp life is rate at 25,000 hours. 120 volt only. 4Kv rated medium base porcelain socket.Key-slotted Ballast Assembly is mounted to an aluminum plate, which is mounted inside the base. Quick disconnects for easy installation and removal.4kv rated medium base porcelain socket. Nickel-plated screw shell with center contact.26W Fluorescent socket is a GX24Q-3 base.32W Fluorescent socket is a GX24Q-3 base.42W Fluorescent socket is a GX24Q-4 base
• Housing:356 HM high-strength, low-copper, proprietary cast aluminum alloy . Dome roof with die-cast aluminum louvers. Easy access to lamp. 5" dia. extruded aluminum with a wall thickness of 0.125". All non-ferrous fasteners prevent corrosion and ensure longer life.
• Certifications: ETL listed to U.S. safety standards for wet locations.cETL listed to Canadian safety standards for wet locations.Manufactured to ISO 9001:2008 Standards
• Warranty: Five-year limited warranty

Product Files

Click for product spec sheet
