Cast Lighting  |  SKU: CCGL105WB

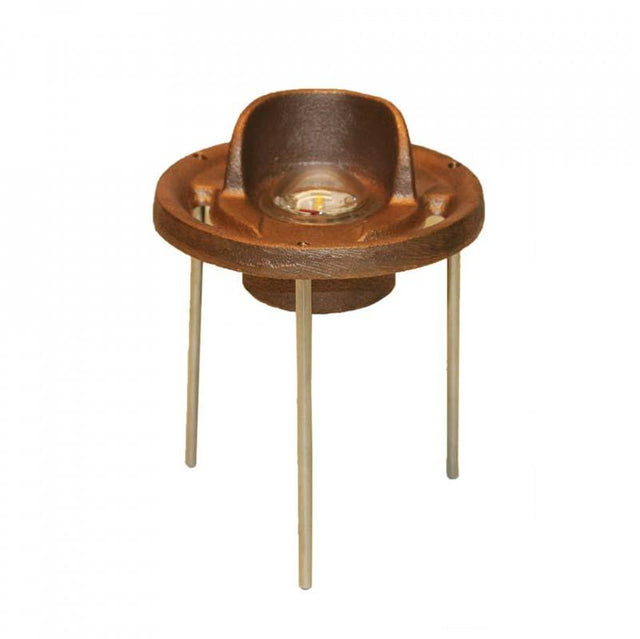

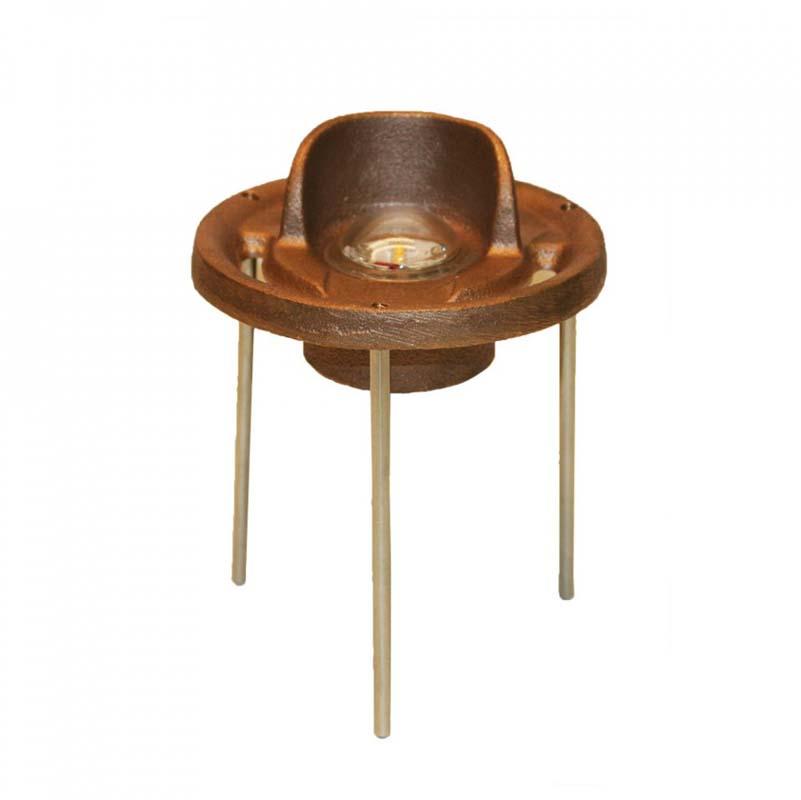

CCGLB LED Craftsman Series Bronze Ground Lights By Cast Lighting

$179.40 $224.25
Shipping calculated at checkout.

Select Lamp Type

Cast Lighting Typically Ships within 1-5 days (exceptions may apply)

Description

The CCGLB LED Craftsman Series Bronze Ground Lights By Cast Lighting is a CAST Craftsman Bronze Ground Light (10 Watt Halogen Equivalent)

Description

These compact solid bronze Ground Lights feature fully Integrated and sealed LED's. Choose from (4) ground light models with high-quality fixed optics with a selection of lumen levels. These ground lights have fewer advanced features than Impressionist and Classic fixtures (so have a lower price point), but share the high levels of durability and performance that define 'CAST Quality'.

Applications

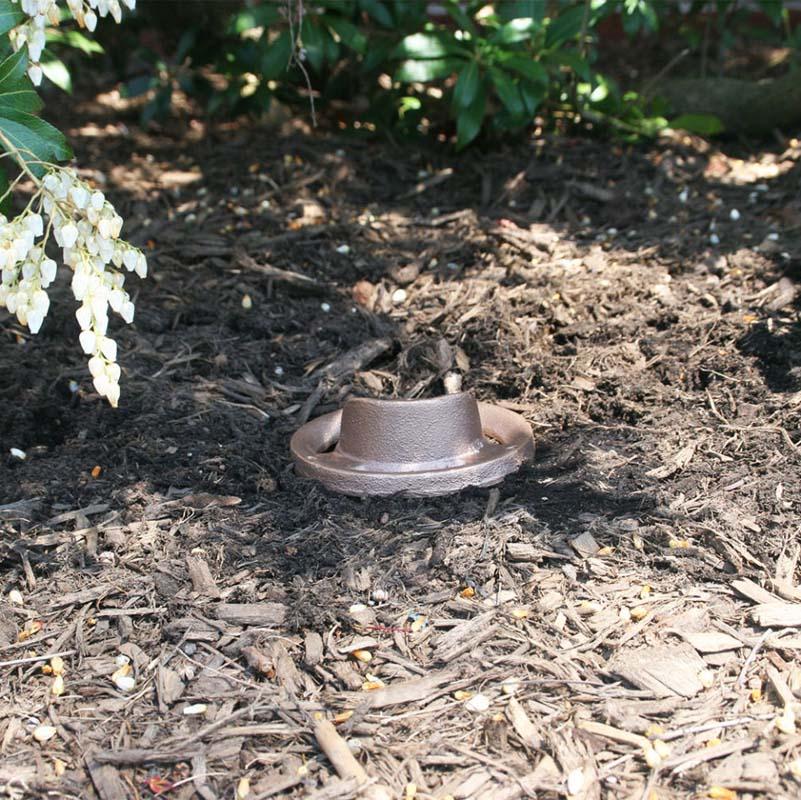

Small compact fixtures great for uplighting/wash lighting landscapes, shrubs, trees, and architectural features. Extremely effective for washing low and wide plant material. Highly Versatile in applications, as a standalone fixture, if well light application is needed, easily snaps into gimbal ring of Well Light (use CWLNLNW) or can be used as LED Retrofit for existing Par 36 halogen Well Light installations.

Features

Foura High Quality Options

  • (CCGL18336B) Bronze Spot Light - 36° Beam Angle, 153 Lm - 20 Watt Halogen Equivalent
  • (CCGL25036B) Bronze Spot Light - 36° Beam Angle, 229 Lm - 35 Watt Halogen Equivalent
  • (CCGL105WB) Bronze Wash Light - 120° Beam Angle, 49 Lm - 10 Watt Halogen Equivalent
  • (CCGL270WB) Bronze Wash Light - 120° Beam Angle, 164 Lm - 20 Watt Halogen Equivalent

Durability

  • CAST Bronze for unmatched corrosion resistance, with no coating to peel, flake, chip or fade.
  • Convex Lens and built in drainage channel help prevent calcium build-up
  • Unbreakable body
  • Fully Potted and sealed against the elements
  • Marine-Grade Tin-Coated No-Ox Wire for lifetime electrical conductivity

Performance

  • LED components Integrated into fixture bodies to draw heat away from the LED's for maximum longevity and performance
  • Premium-quality LEDs deliver consistent color temperature and accurate color rendering.
  • Superior lenses and optical elements for exceptional beam quality.
  • Electronics protected from electrical spikes and surges
  • Electromagnetic radiation (EMI) filtered to prevent interference with wireless devices.

Specifications

Dimensions:

Body: 4" width X 1 3/8" H

Stake: 4" removable Stainless Steel Pins (3)

Construction:

  • Solid sand cast Bronze body and base
  • Stainless Steel pins(3) to stake fixture to ground for fast easy installation
  • 5aa tin-coated #18-2 No-Ox® marine-grade wire.
  • Lifetime warranty on fixture components, 5 Year Warranty on LED Components

LED Specifications:

  • CCGL18336B
    • LED Light Source: 1 Cree LEDaas, Life(L70) 51,400 hrs. Color Temp: 2794°K CRI: 80
    • Input voltage: 10 to 24V, AC or DC
    • Power: 2.69 watts, .25 amps, Power Factor: .88 Volt Amps: 3.06
    • Lumen output-fixture: 153 lm
    • Center Beam Candela: 417
    • FCC compliant for EMI interference
  • CCGL25036B
    • LED Light Source: 1 Cree LEDaas, Life(L70) 51,400 hrs. Color Temp: 2816°K CRI: 79
    • Input voltage: 10 to 24V, AC or DC
    • Power: 4.3 watts, .42 amps, Power Factor: .82 Volt Amps: 5.24
    • Lumen output-fixture: 229 lm
    • Center Beam Candela: 665
    • FCC compliant for EMI interference
  • CCGL105WB
    • LED Light Source: 1 Cree LED, Life (L70) 60,500 Hrs. Color Temp, 2787°K, CRI 82
    • Input Voltage: 10-24 Volts, AC or DC
    • Power: .27 Amps, 2.82 Watts, Power Factor .88, Volt Amps 3.27
    • Lumen output-fixture: 49 lm
    • Center Beam Candela: 29
    • FCC compliant for EMI Interference
  • CCGL270WB
    • LED Light Source: 2 Cree LEDaas, Life(L70) 60,500 hrs. Color Temp: 2758°K CRI: 82
    • Input voltage: 10 to 24V, AC or DC
    • Power: 4.33 watts, .4 amps, Power Factor: .9 Volt Amps: 4.81
    • Lumen output-fixture: 164 lm
    • Center Beam Candela: 94
    • FCC compliant for EMI interferencea

Listings:

  • Emmision Standards: FCC Class A conducted and radiated
  • UL 8750 recognized; CSA C22.2 No. 250.0-08 Canadian National Standard for Luminaires
  • ETL Listed
  • RoHS
  • IP66 rated
  • Patent Pending Design
California Residents: Prop 65 regulations
Product Files

Click for CAST Landscape Lighting Catalog

Click for Craftsman Series Bronze Ground Lights: Product Sheet

Click for Landscape Warranty
