Cast Lighting  |  SKU: CWLMR16

CWLMR16 Classic Mr-16 Well Lights By Cast Lighting

$364.08 $455.10
Shipping calculated at checkout.

Select Lens

Cast Lighting Typically Ships within 1-5 days (exceptions may apply)

Description

For CWLMR16Ga You may choosea a grate:a CWLG1CBa (full grate) ora CWLG2CBa (grate with opening for optimal light output)

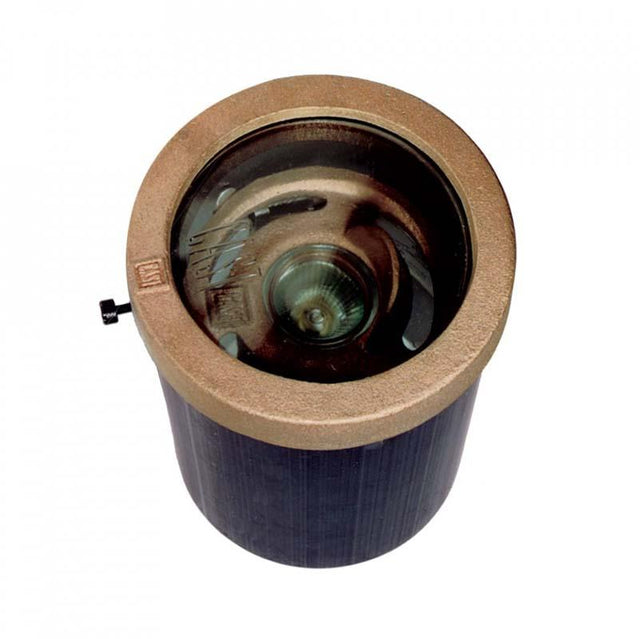

The CWLMR16 Classic Mr-16 Well Lights By Cast Lighting is a CAST MR-16 Well Light with convex lens in bronze ring

Description

This rugged well light features a solid bronze interior assembly in a stainless steel gimbal. It houses the versatile MR-16 lamp.

Applications

Suitable for applications where a below-grade fixture is required, such as in turf or hardscaped areas.

Note: For CWLMR16G please specify which grate you would like: CWLG1CB (full grate) or CWLG2CB (grate with opening for optimal light output)

Features
  • Stainless steel gimbal ring with superior adjustability
  • Solid bronze lamp housing
  • Two options - solid bronze grate or solid bronze ring with convex borosilicate lens
  • High-temp socket
  • Pre-wired with 25' #16-2 tin-coated No-Ox® marine grade wire
  • Spider Splice® ready
Specifications
  • Dimensions and Weight:
    • Body: 5.5" diameter x 8.0" height
    • Weight: 3 lbs.
  • Lamp Specifications: 12V MR-16 (50w max.) Lamp not included
  • Listing: UL 1838 Listed Low Voltage Luminaire for wet locations
  • Construction:
    • Body: PVC
    • Socket Assembly: High-temperature socket, solid bronze housing with convex borosilicate lens
    • Grate: Solid bronze, secured with two stainless steel set screws
    • Wiring: Tin-coated No-Ox marine-grade wiring (inside fixture and external 25 ft. #16-2 lead)
California Residents: Prop 65 regulations
Product Files

Click for Classic MR-16 Well Light with Grate: Specifications

Click for Classic MR-16 Well Lights: Product Sheet

Click for Landscape Warranty

Click for Photometrics Chart

Click for Source Lighting Lamp Guide
