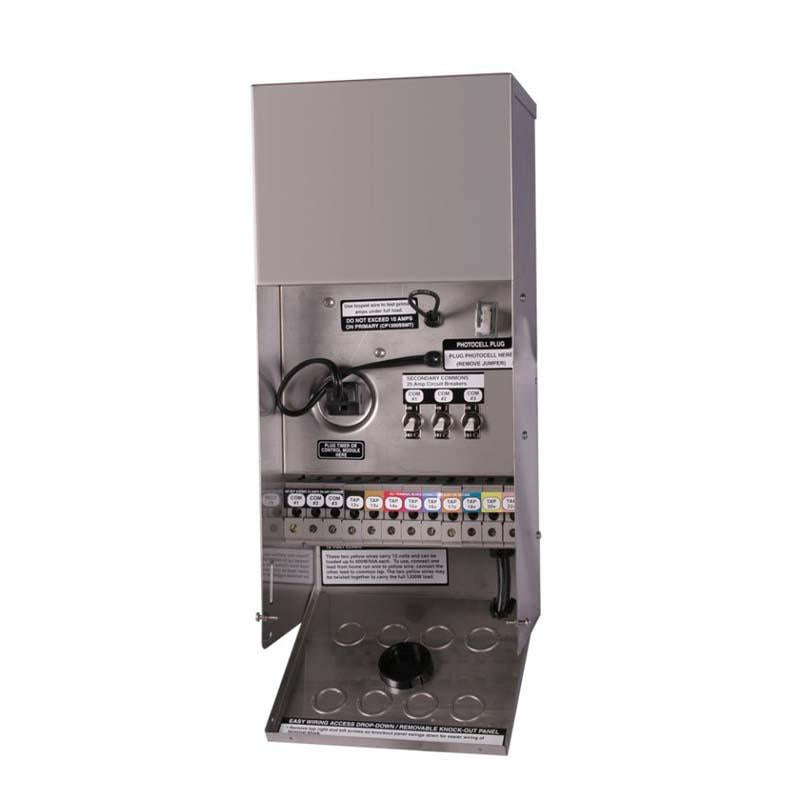

CMSSMT Master Series Transformers By Cast Lighting

The CAST Master Series® Transformers have mutliple taps and work great for larger CAST Lighting Installation.

• Robust inrush protection to guard against tripping of breakers
• Resin-sealed toroidal core - ensures for the highest possible efficiency
• "Full Load" commons configuration - ensures that the transformer can be loaded to its capacity
• Voltage taps of 12, 13, 14, 15, 16, 17 & 18 Volts
• Extra-large 125 Amp terminal blocks - to accommodate up to (10) #12/2 wires
• Extra-large wiring compartment
• Inclues 24" PVC conduit - hides and protects home run wires going into the transformer
• Stainless Steel enclosure

Electrical

• Input: 120V, 60Hz
• Output: 12V-18V
• Capacity: 900 or 1200 Watts
• Transformer Core: Epoxy resin encapsulated, magnetic toroid, primary thermal protection
• Primary Overload Protection: 12.5 Amp magnetic circuit breaker
• Secondary Overload Protection: 25 Amp magnetic circuit breaker for each of the 4 commons
• Electronic Components: Power bypass relay, double thermistor surge protection
• Power Cord: 6-ft heavy uty #12/3 AWG power cord with 3-prong grounded wall plug
• Secondary Terminal Blocks: 125 Amp rated, extra large

Housing

• 304 Stainless Steel with removable outer plate
• Includes 24" x 2" PVC wire conduit with locknut assembly

Listing

• cUL 506 Listed, approved for exterior and interior use

Dimensions

• 900W: 6.5" wide, 17" tall, 7" depth, 33 lbs.
• 1200W: 9" wide, 19" tall, 7" depth, 57 lbs.

Warranty

• Lifetime on housing and core, 3-year warranty on electrical components
• Fully field repairable
