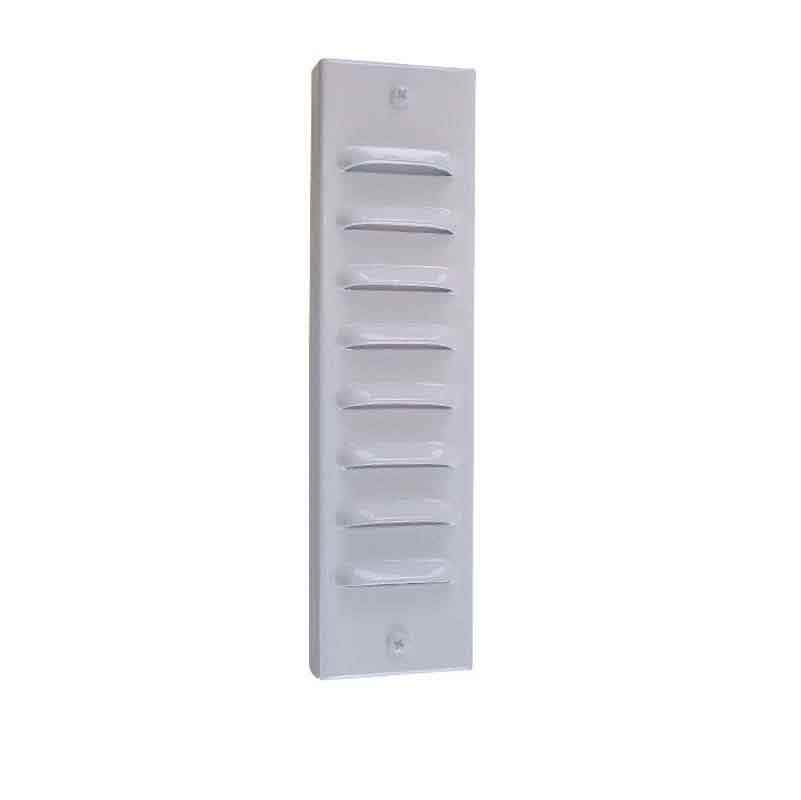

Focus Industries SL-02V-LEDP Series 5W LED 2700K Stamped 8 Louver Flat Panel Vertical Step Light 12V

Focus Industries SL-02V-LEDP Series 5W LED 2700K Stamped 8 Louver Flat Panel Vertical Step Light 12V

Specifications:

• Construction: Stamped aluminum or brass 8 louver vertical rail light.
Stamped surface mounting bracket. no back box required.
• Gasket: Black neosponge closed cell; .190 inch thickness
• Lifetime Rating: 50,000 hours
• Socket: None
• Driver: 5w output, 12v AC input. Maximum distance from fixture is 18 feet. For use with magnetic transformers only
• Voltage Range: 9 to 18 volts. Optimum operating range of 10 to 15 volts for consistent performance and brightness.
• Wiring: Red(+) and Black(-) 18 gauge zip cord from LED panel. Connects to external driver Red(+) and Black(-) 18 gauge zip cord. Additional 6 inch 18/2 zip cord supplied for wiring external driver to main cable. For 25 foot 16/2 fixture lead wire add -25F to catalogue number.
• Connection: FA-05 Quick Connector (not supplied) from LED driver to main cable(12/2, 10/2 or 8/2 only)
• Mounting: Surface mount bracket; Face plate attaches to bracket with two provided set screws
• Finish: Aluminum- Black texture polyester powder coat; optional finishes available; Brass- Unfinished; optional finishes available
• Caution: Must be powered by low voltage AC Magnetic transformer only
