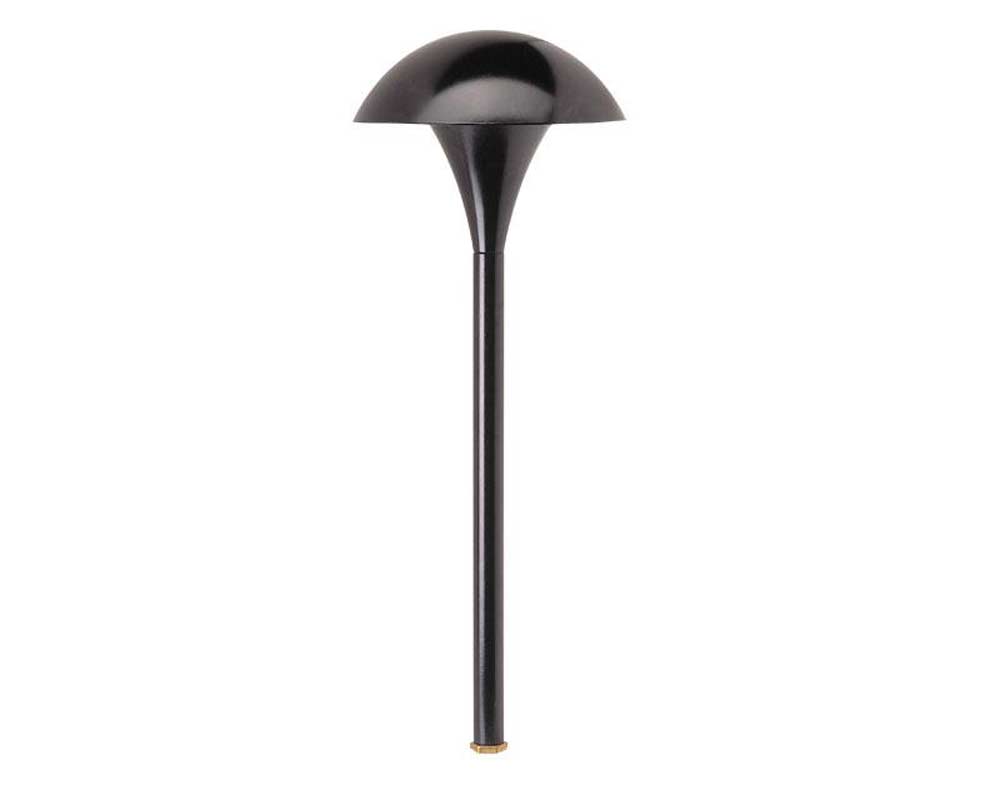

Hadco MU5 Medium 120V Mushroom Path Light

The MU5 path light luminaires feature classic mushroom styling and a graceful appearance making them suitable for most applications. Designed as a spread light, these luminaires produce a uniform light pattern with no objectionable glare. Construction choices include aluminum or Solid brass stem die-cast brass. Available with both conventional and LED technologies.

Features

• Line Voltage 120V
• Lamp is not included. 100W maximum A19 lamp. Lower wattage lamps are acceptable
• Ensures long-lasting durability
• Easy maintenance
• Fade and abrasion resistant
• Prevents water leaks
• Quick and easy installation
• Die-cast aluminum housing
• Tool-less entry and relamping
• Polyester powder coat finish
• Silicone gasketing
• Pre-wired

Specifications

• Hosing: Die-cast aluminum. Stem is extruded aluminum. Roof has dual stainless steel hinge with stainless steel spring-lock for tool-less entry and relamping. 1/2" NPS male threads to screw onto accessory mounting stake or junction box, sold separately.
• Height: 25 Inch
• Width: 9 Inch
• Max Weight (Text Format): 5.56 lb.
• Optical Assembly: Frosted tempered glass sprinkler shield includes top and bottom silicone gaskets for tight seal. Underside of roof has white reflector, with center ALZAKa© reflector for optimal light distribution.
• Electrical Assembly: 4kv rated porcelain mini-can base. Nickel-plated screw shell with center contact. Fixture is pre-wired with 18 AWG black, white, and ground wires.
• Warranty: Three-year limited warranty.
• Certifications: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.
