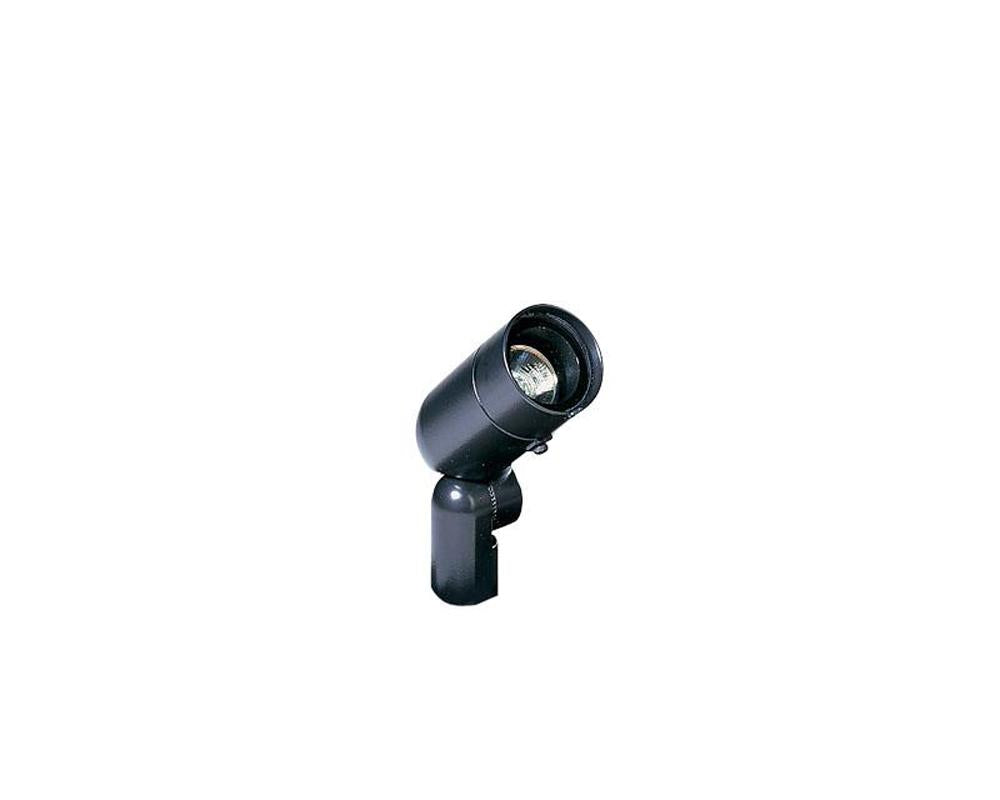

Hadco BL711 12V Micro Aluminum Bullet

Stake Included

The BL711 Mini-Bullyte is an excellent choice for limited space applications. It's all aluminum construction includes a fully-adjustable swivel arm with vibration-proof locking teeth. Optics include a clear tempered glass lens and requires a 20W T3 or 35W maximum MR11.

Features

• Die-cast marine grade aluminum alloy housing
• Fully-adjustable swivel arm with vibration-proof locking teeth
• Thermoset powdercoat finish
• Pre-wired
• Ensures long-lasting durability
• Able to direct light with ultimate precision
• Provides added corrosion resistance
• Quick and easy installation

Specifications

• Housing: Die-cast aluminum. Double gasketed shroud, die-cast aluminum. Fully-adjustable swivel arm with vibration-proof locking teeth" NPS male threads to screw onto accessory mounting stake (included) or junction box (sold separately). Fasteners are 300 series stainless steel.
• Lamping for LED: Lamp is included with fixture. Philips 12V LED 1.2W Capsule lamp. Up to 88% energy savings when compared to a 10W Capsule halogen lamp. Long lifetime of 15,000 hours (B50,L70). Operating temperature range is between -20C and 35C (ambient). Suitable for use in enclosed luminaires where the case temperature (Tc) remains below Tc MAX.Total Lumens = 105lm Lower wattage lamps are acceptable.
• Lamping for Non LED: 20W maximum T3 bi-pin lamp. 35W maximum MR11 bi-pin lamp. Lamp is not included. Lower wattage lamps are acceptable.
• Width: 2 Inch
• Depth: 4.37 Inch
• Max Weight (Text Format): 0.85 lb
• Electrical Assembly: Bi-pin socket type (G4) with 250 C high temperature Teflon coated wire leads. 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105a°C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.
• Certifications: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.
• Mounting: S7 Mounting Stake
• Optical Assembly: Clear tempered glass lens.
• Warranty for Non LED: Three-year limited warranty
• Warranty for LED: Five-year limited warranty

Product Files

Click for Non LED spec sheet

Click for LED spec sheet
