Hadco Lighting | SKU:
DWCL2-A
20% off
Hadco DWCL2 12V 20W T3 Composite Semi-Recessed Mini Beacon
$183.86
$229.83
Unit price
/
Unavailable
Shipping calculated at checkout.
Hadco DWCL2 12V 20W T3 Composite Semi-Recessed Mini Beacon is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Hadco DWCL2 12V 20W T3 Composite Semi-Recessed Mini Beacon
$183.86
$229.83
Unit price
/
Unavailable
Description
Description
Lamp Included

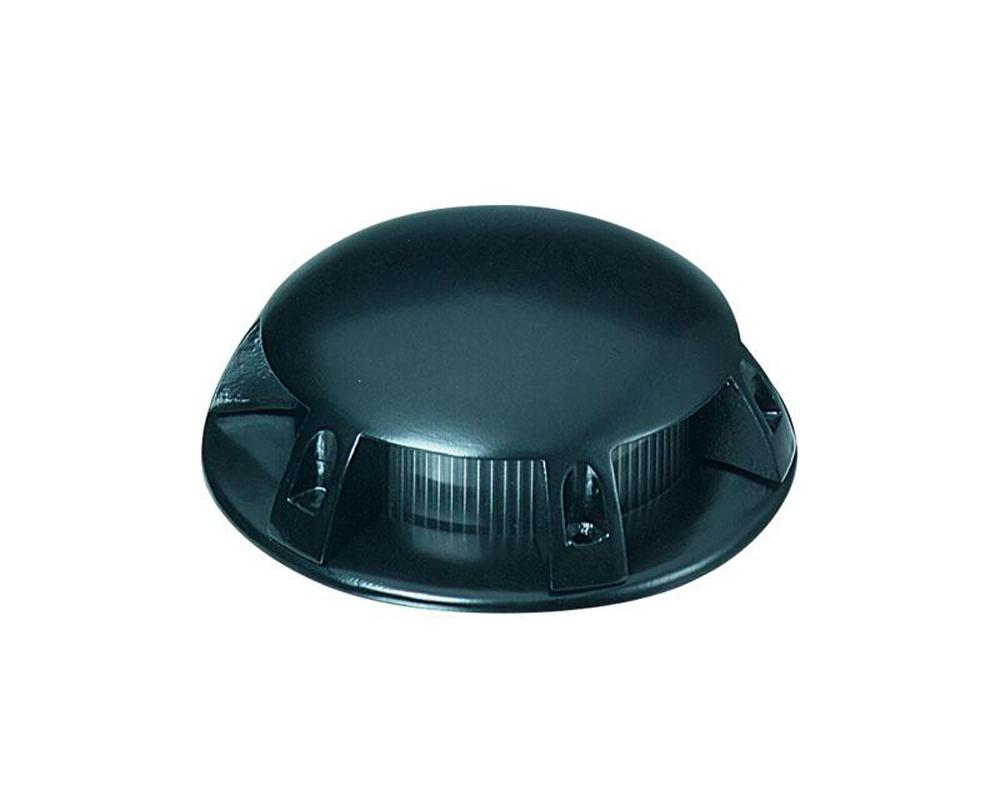

The DWCL series is a low voltage beacon constructed of a single-piece compression molded fiberglass reinforced polyester composite lower housing and die cast brass upper housing. It is available in two distinctive heights. The natural brass is as-cast and tumble polished. Composite is pressure formed, molded-in color.
Features
- Superior durability
- UV and corrosion resistant
- Protected against moisture, dust and insects
- Suitable for a variety of applications
Details
| Lamping | 20W maximum T3 bi-pin lamp.Lamp is included with fixture.Lower wattage lamps are acceptable. |
| Electrical Assembly | Bi-pin socket type (G4) with 250a°C high temperature teflon coated wire leads.12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105a° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included.12 Volt system requires remote transformer, not included. |
Specifications
- Voltage: 12V
- Lamp Type: Halogen
- Housing: Fasteners are 300 series stainless steel. Gasketing is silicone. Single-piece compression molded fiberglass reinforced polyester composite, factory pressure tested to ensurewater will not wick or leak through. Two (2) 1/2" conduit inlets at bottom. Note: Watertight connectors and potting compound (by others) must be used to maintain a watertightseal at conduit entry points.
- Height: 7.38 Inch
- Width: 5.31 Inch
- Max Weight (Text Format): 2.5 lb.
- Certifications: ETL listed to U.S. safety standards for wet locations.cETL listed to Canadian safety standards for wet locations.Manufactured to ISO 9001:2008 Standards
- Optical Assembly: Ribbed clear acrylic
- Warranty: Ten-year limited warranty
