Hadco Lighting  |  SKU: DUL1-A

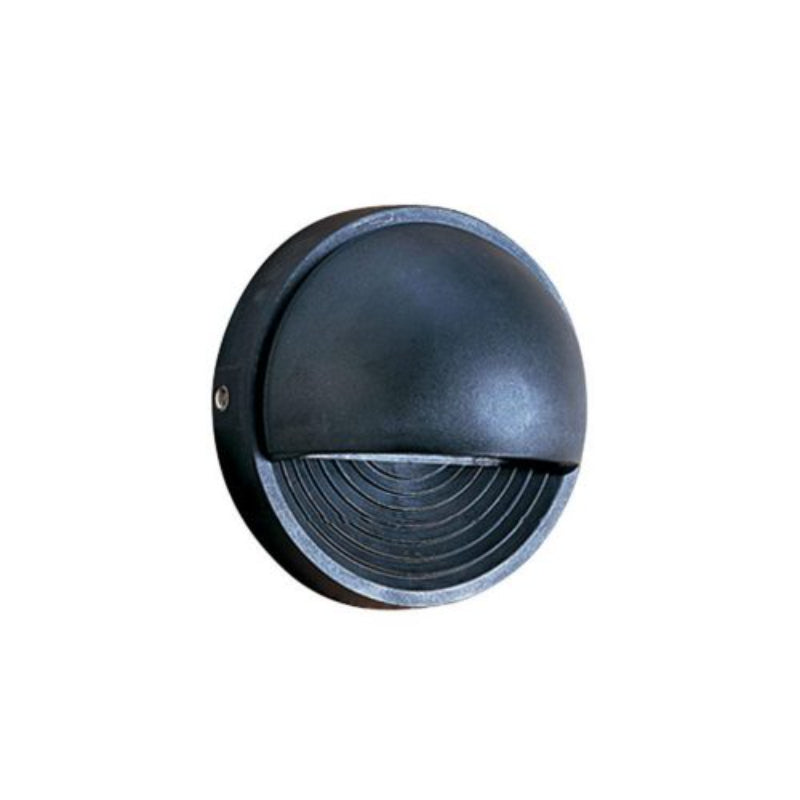

Hadco DUL1 12V Round Ultem Composite Step Light, Black Finish

$120.82 $151.03
Shipping calculated at checkout.

Select Finish
Select Lamp Type

Description

Lamp Included

The DUL1 black deck light is a low voltage composite LED luminaire ideal for surface mounting on deck surfaces. Ita™s a one-piece injection molded from ULTEMa® High Performance Polymer composite with molded-in colors and stainless steel fasteners. The unit is IP67 rated, and energy saving LED is available to ensure even light distribution and long life.

Features

  • Ensures long-lasting durability
  • Offers up to 50,000 hour life with LED
  • Provides added corrosion resistance
  • Completely dust-tight and sealed against direct jets of water
  • Quick and easy installation
  • ULTEM composite housing
  • Available with warm or cool LEDs
  • Color impregnated material finish
  • IP67 rated
  • Pre wired
  • Black powdercoated Finish

Specifications

  • Housing: One-piece injection molded ULTEMa® High Performance Polymer composite. Fasteners are 300 series stainless steel.
  • Electrical Assembly: Bi-pin socket type (G4) with 250a° C high temperature Teflon coated wire leads. 12 volt fixture is pre-wired with 6-ft. pigtail of 18-2 AWG, 105a° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.
  • Optical Assembly: Frosted, annealed glass lens Reflector is Stamped Hammertone Aluminum.
  • Lamping for LED: Philips 12V LED 1.2W Capsule lamp. Up to 88% energy savings when compared to a 10W Capsule halogen lamp. Long lifetime of 15,000 hours (B50,L70). Operating temperature range is between -20C and 35C (ambient). Suitable for use in enclosed luminaires where the case temperature (Tc) remains below Tc MAX. Total Lumens = 105lm Lower wattage lamps are acceptable.
  • Lamping for Non LED: 10W maximum T3 bi-pin lamp. 10W T3 lamp is included with fixture. Lower wattage lamps are acceptable
  • Height: 3.5 Inch
  • Width: 3.5 Inch
  • Max Weight (Text Format): 0.20 lb
  • Warranty for LED: Five-year limited warranty
  • Warranty for Non LED: Ten-year limited warranty
Product Files

Click for LED spec sheet

Click for Non LED spec sheet
