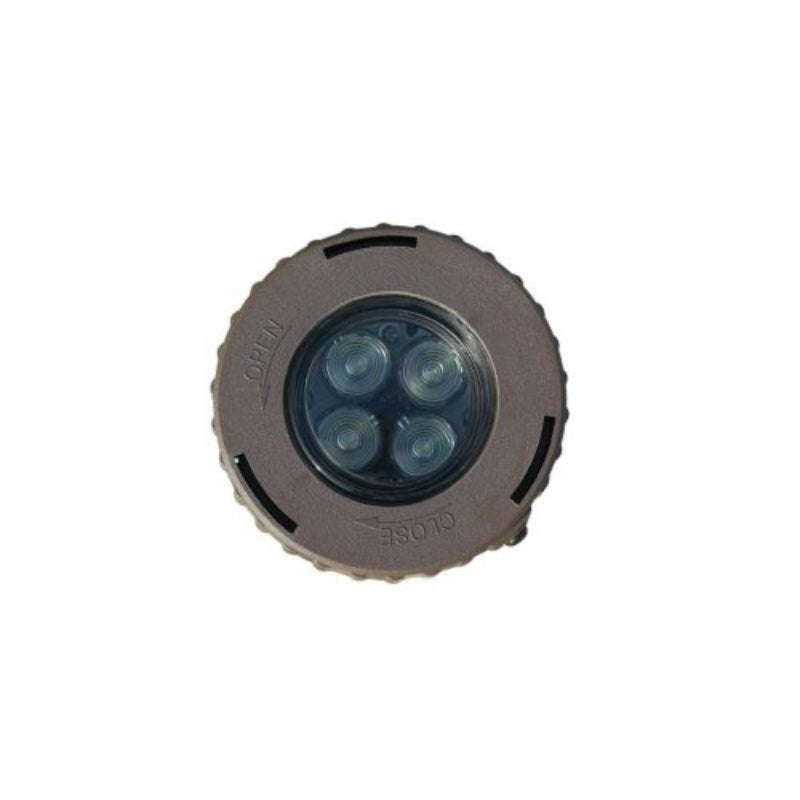

Hadco IUL516 Composite Inground Light

Lamp Included

Hadcos IUL516 is a compact low voltage composite landscape luminaire for inground applications. Lamping sources include 35W maximum MR16 bi-pin lamp. Construction includes a one-piece injection molded ULTEMa® High Performance Polymer composite body with a single piece injected lens ring and gasketed lens. Twist-off operation for ease of maintenance.

Features

• ULTEM composite housing
• Color impregnated material finish
• Pre-wired
• Design flexibility
• Ensures long-lasting durability
• Provides added corrosion resistance
• Quick and easy installation

Specifications

• Housing: One-piece injection molded ULTEM High Performance Polymer composite. Lens ring is a Single-piece injection molded ULTEM High Performance Polymer with gasketed lens. Twist-off operation for ease of maintenance.
• Height: 4.37 Inch
• Width: 4.12 Inch
• Max. Weight:1.24 lb
• Electrical Assembly: Bi-pin socket type (GU5.3) with 250 C high temperature Teflon coated wire leads. 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105a°C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.
• Certifications: ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.
• Lamping for Non LED: 35W maximum MR16 bi-pin lamp. Lower wattage lamps are acceptable. Covered MR16 are recommended to protect lamps inner capsule.
• Lamping for LED: 7W lamp with 25a° or 35a° beam spread, 25,000 hours life. Color temperature (CCT): Warm White (3,000K nominal). No Mercury. Dimmable. Approximately 460 lumens.
• Optical Assembly: Clear convex, tempered glass furnished with silicone O-ring for watertight seal.
• Warranty: Ten-year limited warranty

Product Files

Click for Non LED spec sheet

Click for LED spec sheet
