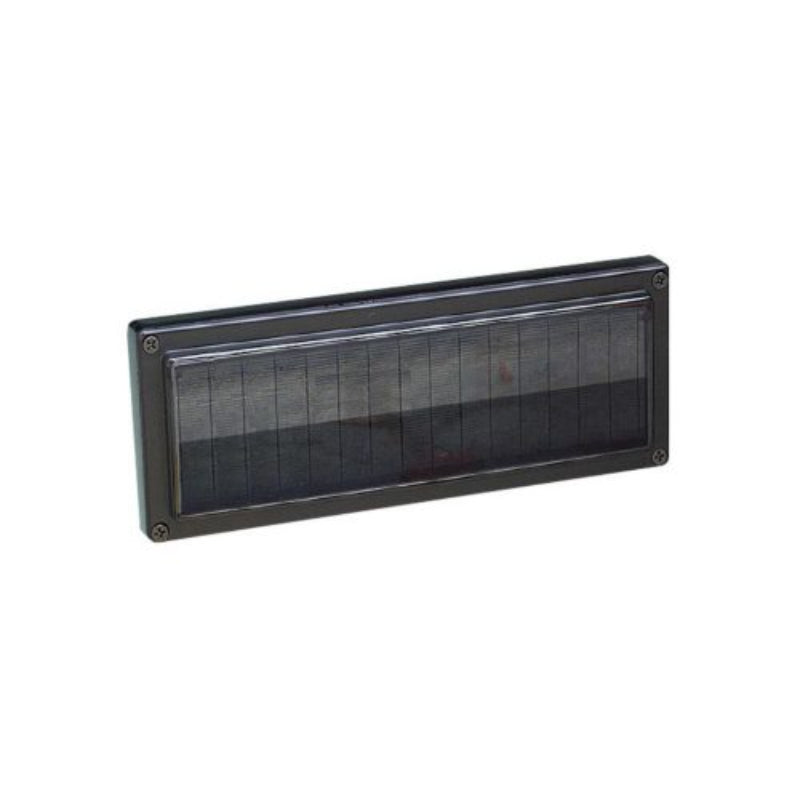

Hadco RSS2 Generation 2 Polycarbonate LED Step light with Housing

The RSS2 is a line voltage LED step light perfect for high pedestrian traffic and plant life applications. The RSF2 is available die-cast aluminum faceplate with galvanized steel, single gang recessed box The optical assembly includes clear UV stabilized injection molded polycarbonate with 45 degree. It is available in standard sources including CFL along with high brightness LED sources delivering 70% lumen maintenance at 50,000 hours with cool white CCT (5500K nominal). Available in black and bronze. Symmetric Reflector is specular aluminum formed Reflector. Hadco LED step light line-voltage landscape luminaire has interchangeable LED color temperature between 3K and 4K CCT.This adjustable luminaire also has the ability to switch between 5 preset light outputs.

Features

• Corrosion-resistant
• Cool external temperatures
• Ability to shield the light source
• Available with conventional and LED technology
• Cast aluminum and bronze construction
• LED Line-voltage landscape luminaire has interchangeable
• Symmetric reflector
• Silicone gasketing

Specifications

• Housing: Die-cast aluminum back box contains less than 0.3% copper to prevent corrosion in concrete or masonry applications.
• Electrical Assembly: 9.2W (on high setting) Input voltage range (VAC): 120-277V. Pre-wired with #18 AWG black, white and ground wire for ease of connection. Also has #18 AWG grey and violet for 0-10V Analog Class 2 dimming, capped off to help prevent cross wiring with line- voltage wires.
• Certifications: ETL and cETL listed.
• Optical Assembly: Opal UV stabilized injection molded polycarbonate with frosted glass siliconed on inside for durability.
• Warranty: 5 year limited warranty

Product Files

Click for product spec sheet
