SPJ Lighting SPJ-40L12 40W Transformer (Indoor)
SPJ Lighting SPJ-40L12 40W Transformer (Indoor) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
SPJ Lighting SPJ-40L12 40W Transformer (Indoor)
Description
Description
SPJ Lighting SPJ-40L12 40W Transformer (Indoor)

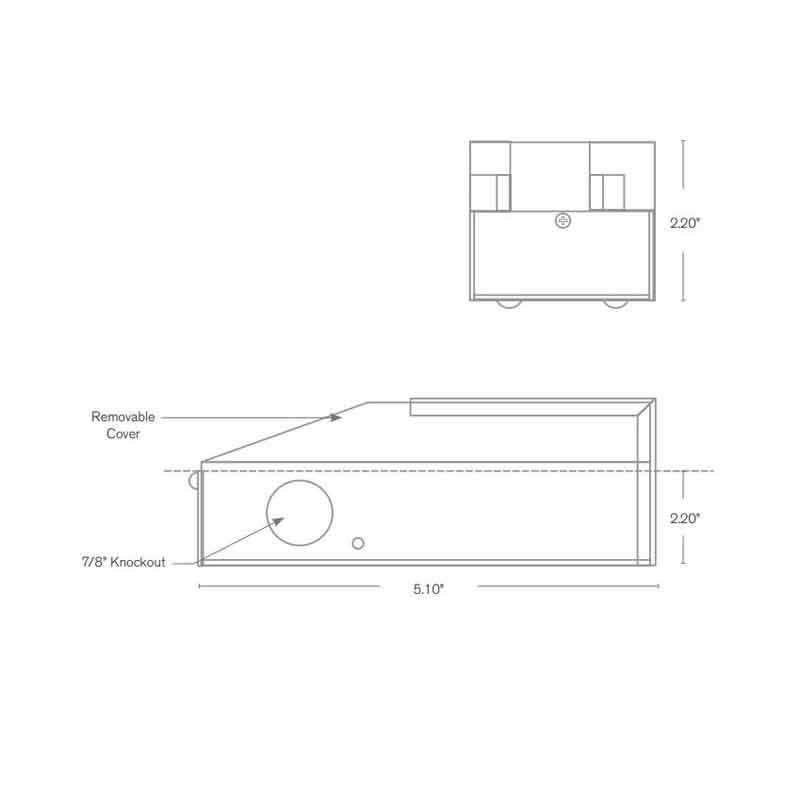

Input leads are 20 AWG. Output leads are 14 AWG. Lead insulation is 105 C.The transformer uses a class B 130 insulation system. Enclosure temperature will not exceed 70 C @ 40 C ambient. Wiring compartment has 2 knockouts sized for 3/4 inch screw cable connectors. The removable cover for the wiring compartment is secured in place by a screw. The enclosure is black powder coated.
Features
- Manual reset thermal circuit breaker on the secondary side
- Controlled with a low-voltage dimmer.
- ETL listed
- CSA listed
- UL standard 5085-1
- NEMA 3R enclosure
- Shown : Black
- Maximum Load : 40 W
- Input Voltage : 120 V 60 Hz
- Output Voltage Full Load : 11.5 V
- Input Current Full Load : 540 mA
- Open Circuit Volts : 12.5 V
- Output Current Full Load : 4.8 A
- Efficiency: 89.20%
- Coil Former : Double Section Bobbin
- Thermal Class: B 130 C
- Leads Primary: PVC 600 V #20
- Leads Secondary: PVC 300 V #14
Product Files
