Hadco Lighting  |  SKU: RL4-AS7

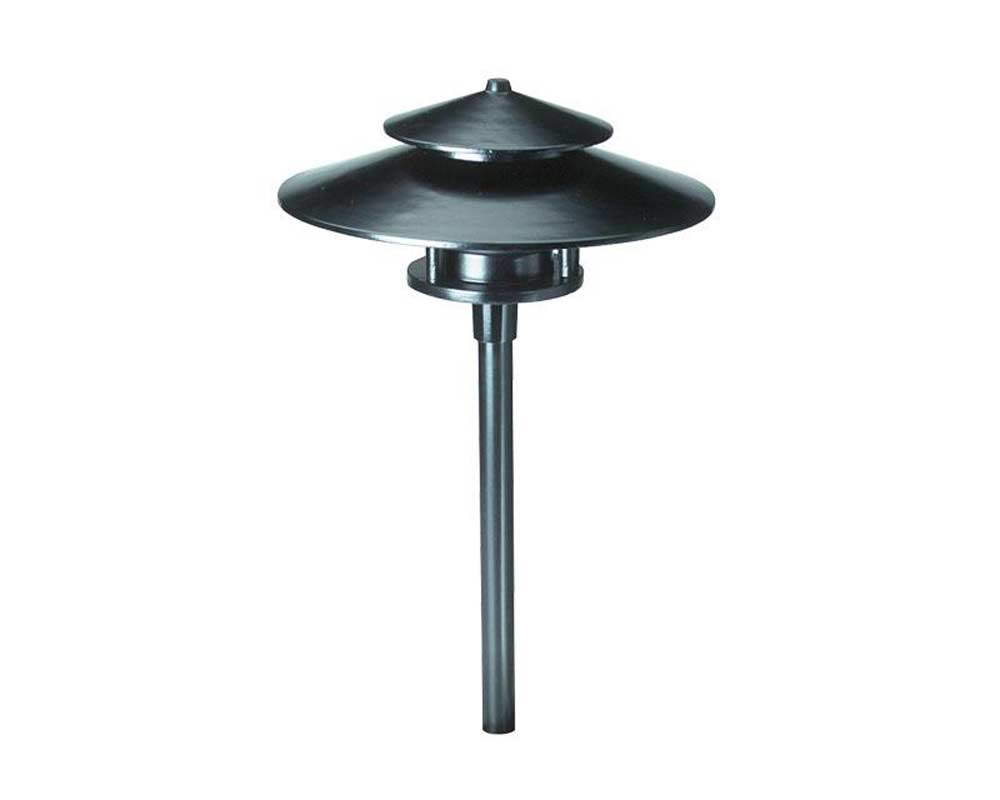

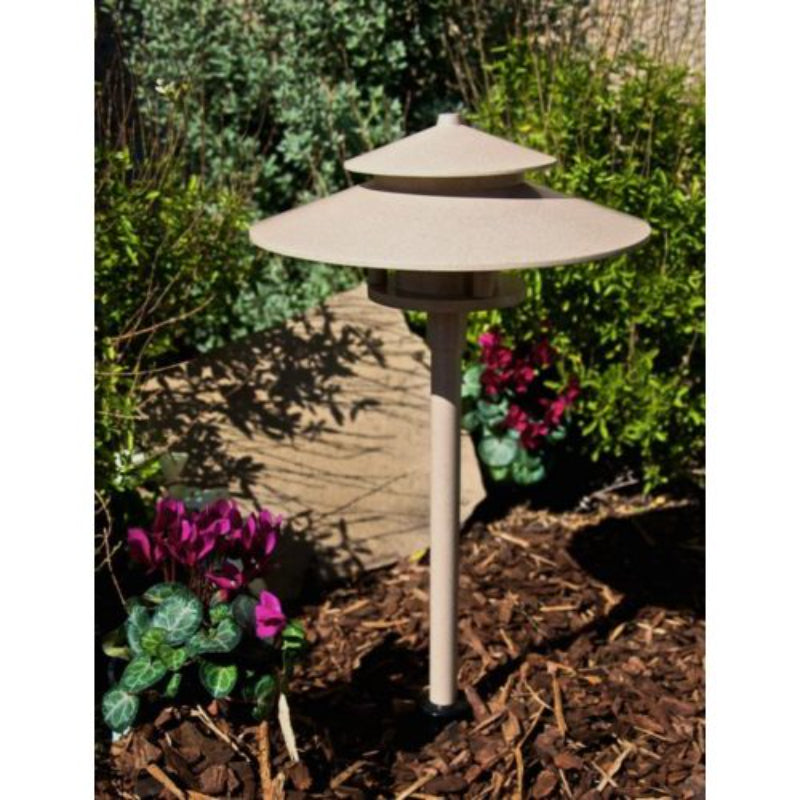

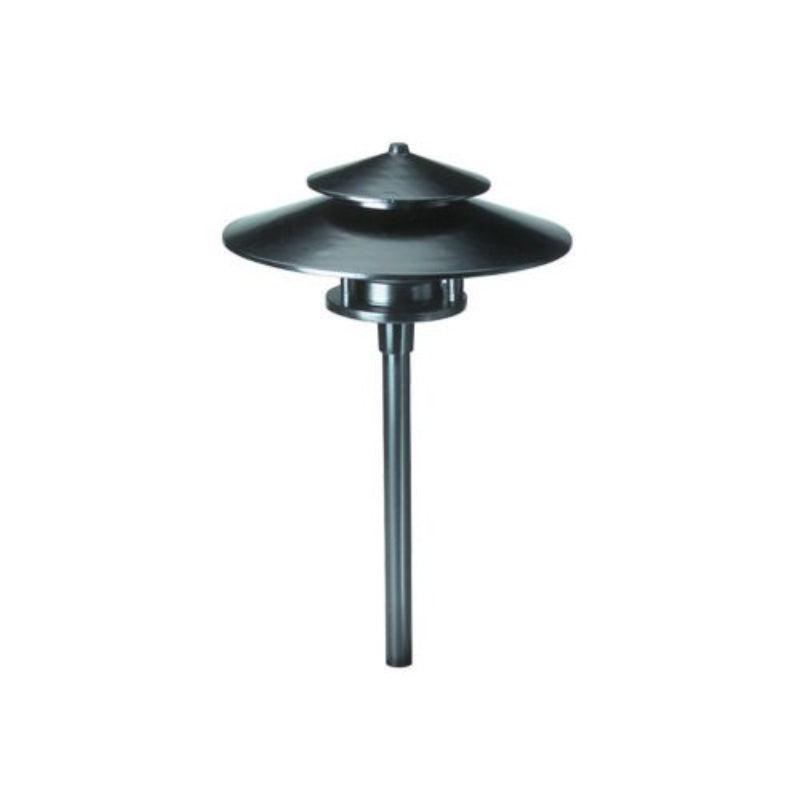

Hadco RL4 12V Large Horizon Aluminum Path Light

$133.09 $166.36
Shipping calculated at checkout.

Select Finish
Select Lamp Type

 More payment options

Description

Lamp & Stake Included

The RL series of low voltage path lights have the charm and unique character of Tudor and Horizons reflected in their individual styling. Both create a soft luminescent ambience, free of glare, because of their hidden light source. Energy saving LED is available to ensure even light distribution and long life.

Features

  • Ensures lasting beauty and durability
  • Easy hookup to the low voltage supply cable
  • Easy installation and maintenance
  • Dust tight and sealed against direct jets of water
  • Offers 50,000 hour life with LED
  • Cast aluminum construction
  • Ships with S7 mounting stake
  • Available with conventional and LED technology
  • Pre-wired
  • IP66 rated

Specifications

  • Housing: Die-cast aluminum. Stem is extruded aluminum. Fasteners are 300 series stainless steel. 1/2" NPS male threads to screw onto accessory mounting stake or junction box, sold separately
  • Optical Assembly: Frosted tempered glass lens. Spun aluminum reflector with white thermoset powdercoat.
  • Lamping for LED: Philips 12V LED 1.2W Capsule lamp. Up to 88% energy savings when compared to a 10W Capsule halogen lamp. Long lifetime of 15,000 hours (B50,L70). Operating temperature range is between -20C and 35C (ambient). Suitable for use in enclosed luminaires where the case temperature (Tc) remains below Tc MAX. Total Lumens = 105lm Lamp is included with fixture. Lower wattage lamps are acceptable.
  • Lamping for Non LED: 20W maximum T3 bi-pin lamp. Lamp is included with fixture. Lower wattage lamps are acceptable.
  • Electrical Assembly: Bi-pin socket type (G4) with 250a° C high temperature Teflon coated wire leads. 12 Volt fixture is pre-wired with 3-ft pigtail of 18-2 AWG, 105a° C, SPT-1W wire. Low voltage quick connector, catalog #LVC3 included for easy hook-up to the low voltage supply cable, not included. 12 Volt system requires remote transformer, not included.
  • Warranty for LED: Five-year limited warranty.
  • Warranty for Non LED: Three-year limited warranty
  • Certifications:ETL listed to U.S. safety standards for wet locations. cETL listed to Canadian safety standards for wet locations. Manufactured to ISO 9001:2008 Standards.
  • Height: 17.25 Inch
  • Width: 10 Inch
  • Max. Weight: 3.18 lb.
Product Files

Click for LED spec sheet

Click for Non LED spec sheet
